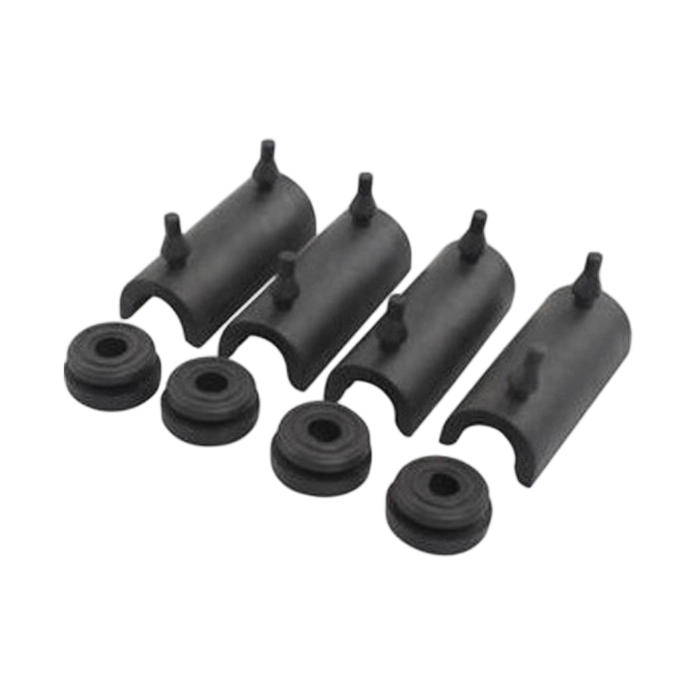

Custom molded rubber grommets and protective clips designed for sealing, cushioning, vibration reduction, and component protection. These rubber parts can be manufactured according to customer drawings, samples, or application requirements for automotive, electrical, industrial, and equipment assembly use.
We mold rubber clips, retainers and edge protectors to match specific panels, brackets and assembly points. The profile, grip, hardness and material are set around the mating part and how the component is installed.
Grooves, lips, ribs and undercuts can be molded around the panel or mating geometry.
Section thickness and hardness can be adjusted to hold the part securely while cushioning contact surfaces.
Push-on, snap-in and slide-on profiles can include flexible locking or gripping features.
Choose the compound around abrasion, oil, weather, heat, chemicals and the amount of surface grip required.
Send a 2D drawing, 3D model or physical sample for dimensional and fit review.
Fit samples can be checked before the approved tool moves into repeat or batch production.
For clips and edge protectors, the mating panel matters as much as the rubber part. Provide the panel or edge thickness, retention geometry, installation method and any insertion, pull-off or service-load requirements.
| Product Specifications | |
|---|---|
| Product Type | Custom Molded Rubber Clips & Edge Protectors |
| Panel / Edge Thickness | Specified from mating panel or component |
| Retention Geometry | Groove, lip, rib, undercut or custom profile |
| Fit Requirement | Slip fit, interference fit or retained fit |
| Installation Method | Push-on, snap-in, slide-on or application-specific |
| Load / Force Input | Insertion, pull-off or service load when specified |
| Material & Hardness | EPDM, NBR, Silicone, HNBR, Neoprene or FKM; hardness to fit requirement |
| Wear / Contact Requirement | Panel protection, cushioning, grip, abrasion control or positioning |
Custom tooling is built around the confirmed clip profile, mating geometry and retention features. Fit samples can be checked before the part moves into repeat production.
Tooling Support
Drawing & Sample Development
These molded rubber parts are used at edges, brackets and contact points where the profile must stay in place, protect a surface or cushion an assembly.
Used on brackets, trim interfaces and panel contact points where a retained rubber profile helps control contact and movement.

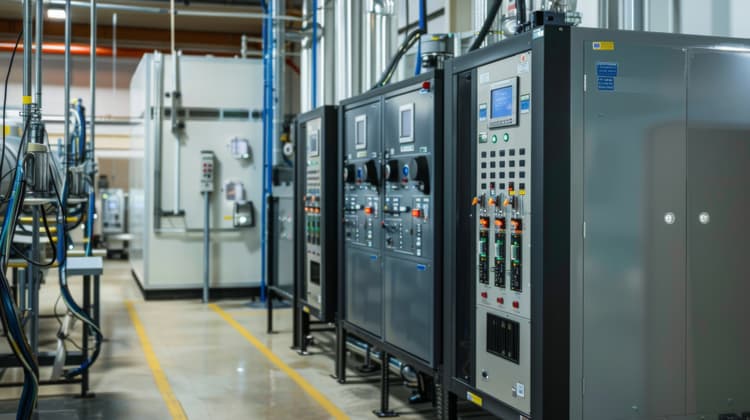

Used around cabinet edges, covers and mounting points that need a softer contact surface or a retained protector.
Suitable for stops, guides, supports and other areas exposed to repeated contact, vibration or localized wear.

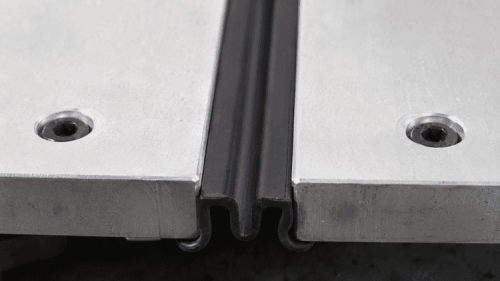

Molded edge profiles can cover exposed metal edges or localized contact areas to reduce scratching and abrasion.
A retained rubber profile can stay fixed at the contact point while reducing impact, movement or noise.
We review the part together with its mating component so the molded profile, retention feature and material match the actual installation before tooling is released.
We check the clip section, wall thickness, retaining features, draft and mold-release direction against the mating geometry.
Panel thickness, groove width, interference and contact area are reviewed against the required installation and retention behavior.
Compound, hardness and tooling details are confirmed around grip, wear, temperature, fluids and the approved profile.
Samples can be checked on the mating part before batch production. Agreed dimensions, fit features and force requirements can then be included in production inspection.
