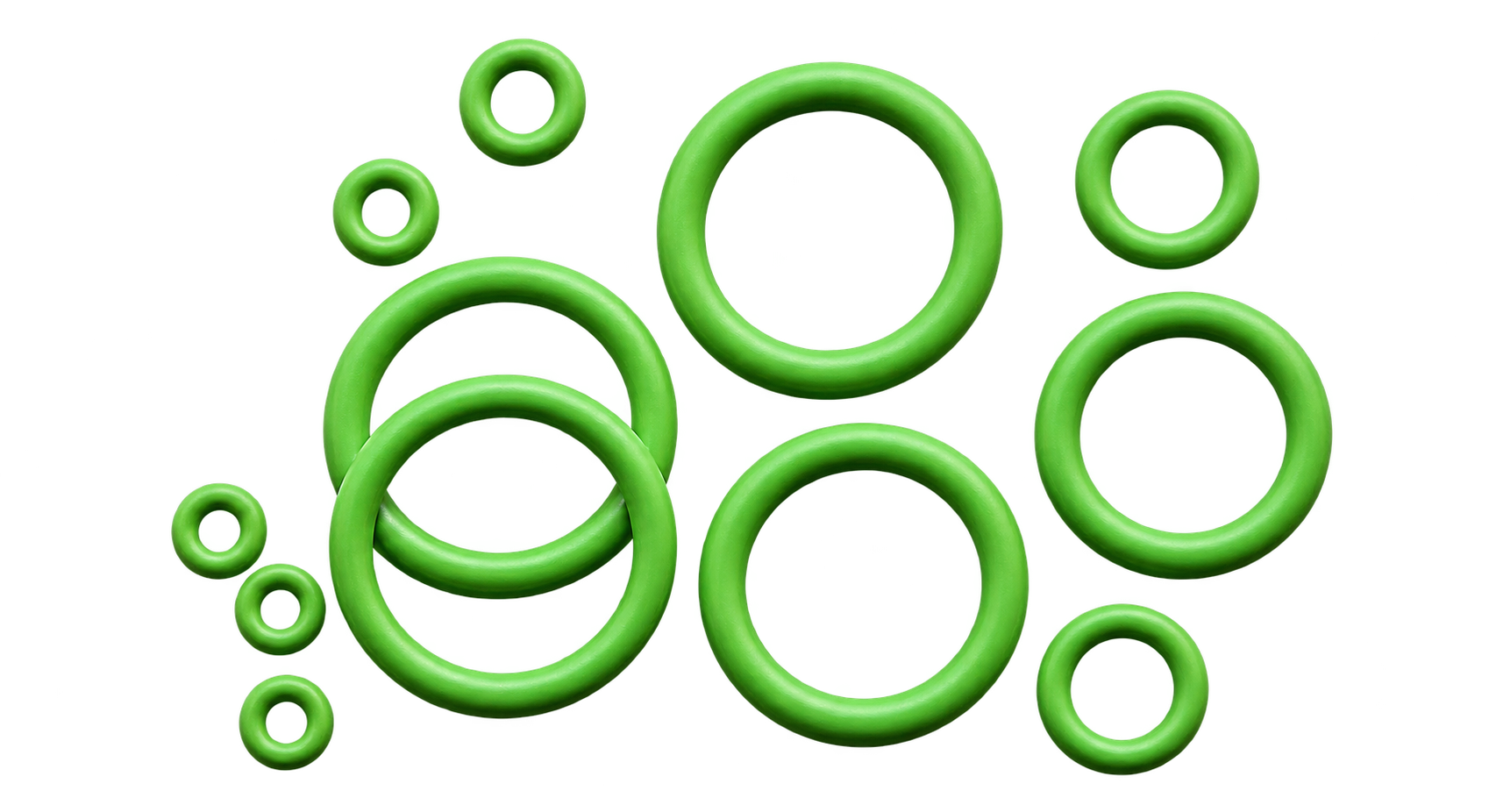

Sourcing O-rings for faucets, mixing valves, pipe fittings, water heaters, or filtration hardware in bulk or custom-molded volumes? Hongjie manufactures plumbing O-rings factory-direct from FDA/NSF-compliant compounds — not retail repair packs — for OEM buyers moving from a drawing or sample to production quantities.
Water-contact seals should be selected according to temperature, fluid chemistry and compliance requirements. Choosing the wrong compound can shorten service life and lead to warranty issues.
For a specific fitting, compare EPDM, NBR and FKM compounds. Buyers requiring water-contact documentation can also review this FDA and WRAS compliance guide to distinguish material compliance from full product certification.
Plumbing O-rings ship almost exclusively to AS568A dash sizes or metric dimensions — we work from either, plus custom sizing pulled straight from your fitting or valve drawing. Standard tooling covers 3,500+ existing profiles, so most common plumbing dash sizes don't require new tooling investment.
| Dimension Range | Standard Tolerance | Precision Option |
|---|---|---|
| 0–10mm | ±0.10mm | ±0.02mm |
| 10–25mm | ±0.15mm | ±0.05mm |
| 25–50mm | ±0.20mm | ±0.08mm |
| 50–100mm | ±0.25mm | ±0.10mm |
The ±0.02mm precision tier matters most on cartridge and valve-stem O-rings, where a slightly oversized or undersized ring changes turning torque or creates a slow drip long before the compound itself fails. Our AS568 O-Rings by dash size reference covers standard sizing if you're cross-checking a spec before submitting a drawing.
Valve mechanisms carry their own sealing demands — stem seals, ball-valve seats, and cycling wear — covered in more depth on our O-Rings for Valves page.
If a plumbing assembly needs gaskets, washers, or diaphragms alongside the O-ring, our Rubber Parts for Plumbing Systems range covers the full component set beyond O-rings alone.
Plumbing O-rings are produced on the same injection and compression molding lines used for automotive and medical programs. Production follows IATF 16949:2016 and ISO 13485:2016 certified processes, with FDA- and NSF-compliant material options available for applicable plumbing requirements.
Statistical Process Control targets Cpk > 1.33 consistency. Compounds are tested against 500+ fluids, gases and chemicals, including cleaning agents, pool chemicals and glycol-based antifreeze, before approval for a specific application.
Dash size, metric dimensions, or a fitting drawing with the sealing groove called out.
Compound recommendation based on water temperature, chemical exposure, and any FDA/NSF requirement.
Turned around in as little as 3–5 business days for fit and function checks.
Molded on existing tooling where the size matches our library, or new tooling for a custom profile.
Buyers already working from a drawing can start directly with our Custom Rubber O-Rings process. For everything else, request a quote and an engineer will confirm compound and sizing before prototyping begins.
Hongjie has manufactured rubber sealing components since 2001. Its 11,000 m² Shenzhen facility employs roughly 150 people, exports to more than 45 countries and delivers over 50 million precision-inspected seals annually.
The factory also maintains 200+ proprietary compounds and 3,500+ existing O-ring tools, helping OEM buyers source plumbing seals with documented process control, established tooling and factory-direct engineering support.
Start a project discussion to confirm the material, size and prototype timing for your plumbing application.
