Unlike annular rubber washers, these solid-centre rubber discs have no through-hole. They are made to specified diameter, thickness and compression requirements for cushioning, equipment support, contact protection and light-duty vibration isolation. Surface textures, grooves and adhesive-backed configurations are available for different mounting conditions.
Unlike annular rubber washers, these solid-centre rubber discs have no through-hole. They are made to specified diameter, thickness and compression requirements for cushioning, equipment support, contact protection and light-duty vibration isolation.
A continuous solid centre distinguishes these discs from annular rubber washers used around bolts or fittings.
Used beneath components or between contact surfaces to provide resilient support and reduce direct impact.
Rubber discs can help reduce low-level vibration transferred between mounted components and supporting surfaces.
The solid contact face helps prevent direct hard-surface contact, marking and localized wear.
Hardness can be selected according to the required cushioning, support and compression behaviour.
Outside diameter and thickness can be produced to drawings, samples or installation requirements.
Rubber disc performance depends on diameter, thickness, hardness, compound, contact area and applied load. Provide the expected static load and acceptable compression or deflection for engineering review.
| Engineering Inputs for RFQ | |
|---|---|
| Product Structure | Solid-centre rubber disc / no through-hole |
| Outside Diameter | Custom to drawing or sample |
| Thickness | Custom to drawing or application requirement |
| Hardness | 10–90 Shore A |
| Static Load | Specify expected load per disc or pad |
| Compression / Deflection | Specify maximum acceptable compression or deflection |
| Contact Area | Full-face or localized loading |
| Mounting Method | Loose fit, adhesive-backed or mechanically retained |
| Surface Options | Smooth, anti-slip texture, grooves or molded features |
| Operating Environment | Oil, water, weather, heat or other exposure |
| Compound Requirement | Select according to load and operating environment; ASTM D2000 support available |
| Compliance Options | FDA, NSF, RoHS or REACH where required |
| RFQ Input | Send diameter, thickness, load, acceptable compression and mounting requirements |

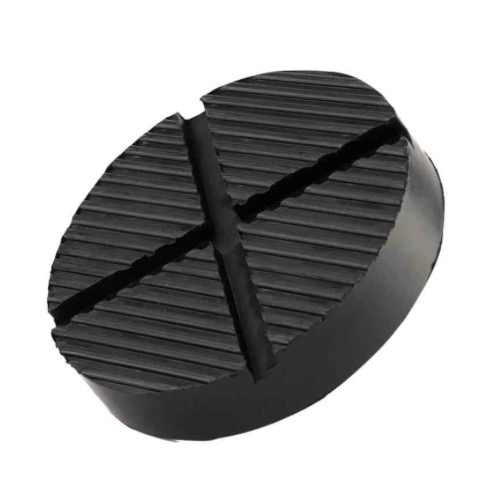

Solid rubber discs have a continuous centre and are used as cushioning pads, equipment supports and contact protectors. Annular rubber washers have a centre hole and are normally installed around bolts, fittings or fastening points.
Solid Disc Structure
Rubber Washer Structure
Solid rubber discs are used where a full contact surface is needed for support, cushioning, spacing, protection or light-duty vibration isolation.
Placed beneath housings, brackets or light equipment to provide resilient support and surface separation.
Installed between contacting parts to reduce direct impact and provide a flexible cushioning layer.
Helps reduce low-level vibration transferred between mounted components and supporting surfaces.
Provides a solid rubber contact face that helps prevent scratching, marking and hard-surface contact.
Used where a solid rubber spacer, stop or support pad is required without a centre opening.
Surface finish and mounting method can be specified according to contact conditions, movement control and assembly requirements.
Suitable for general cushioning, spacing, equipment support and contact protection.
Molded surface patterns can increase grip where movement between contacting surfaces needs to be reduced.
Grooves or molded features can be added for positioning, drainage or controlled surface contact.
Single-sided or double-sided adhesive backing can be reviewed according to the mounting surface and installation method.
